Catalog
Creatherm™ is committed to providing the best products in the industry to improve heating efficiency, reduce energy costs and provide healthier, more comfortable living spaces. We offer a full range of products that can help you reduce your carbon footprint by making energy decisions that are good for the environment and your bottom line.
Save more time by ordering your tubing and accessories direct from Creatherm. We’ve created our Product Catalog not only for your convenience, but also for your peace of mind. Everything in our catalog is compatible with our panels and is standards compliant. When you purchase your accessories from Creatherm, you know that these components have our professional stamp of approval.

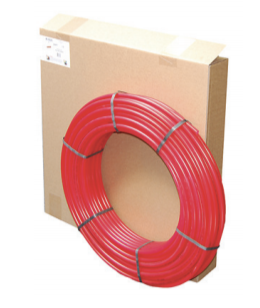

Highly flexible PEX heating tube with oxygen barrier
Manufactured from a proprietary polymer formulation which dramatically increases flexibility and maintains high strength.
Available in 3⁄8″, 1⁄2″, 5⁄8″, 3⁄4″ and 1” tube sizes. LegendFlexTM delivers greater performance and flexibility than standard PEX. We are so confident in its performance we back it with a 30 year warranty.
LegendFlex is extremely flexible and very difficult to kink. In the unlikely event one should occur, simply repair it with a heat gun. No need to cut and use a coupling or replace the tubing.
LegendFlex tubing is also compatible with cold expansion type fitting systems (compliant with standards ASTM F2080 & ASTM F1960). Its strength, durability and thermal memory enables proper seal with crimp or expansion style connections.
Highly flexible PEX with oxygen barrier provides excellent flexiblity and thermal memory for easy installation.

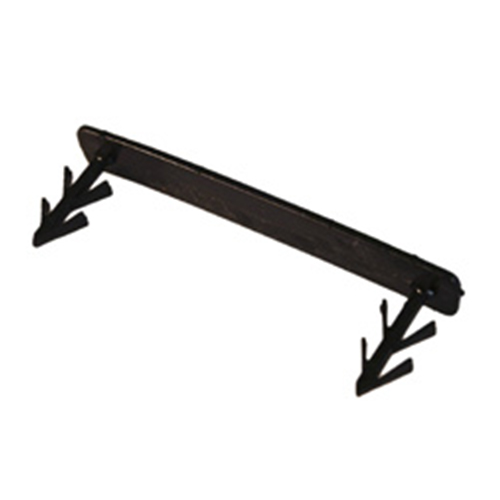

Large Diameter Tube Holder Pins
Designed to be manually inserted into Creatherm “knobs” to hold down large diameter tube (typical 3⁄4”) in tough spots where additional support may be needed. Works on all sizes of tube and all models (thicknesses) of Creatherm.
TUBE HOLDER PIN (1½” LONG) – ALL TUBE SIZES FOR QT-100, QT-200 & QT-300
| 800-349 | Quantity: 100 |

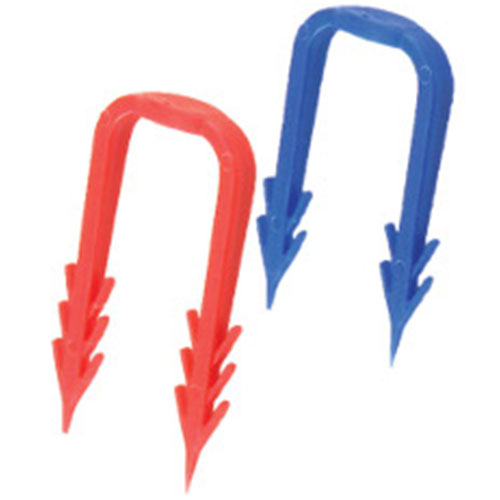

Heavy Duty Tube Holder Pins
Sturdy, high grip pins manually inserted to hold down up to 5⁄8” tubing in rigid foam board installations. May also be used with Tube Track, Tube Track Duo and Mounting Rail (see below).
TUBE HOLDER PIN (1½” LONG) – FOR PANELS 1” OR THICKER
| 800-345 | Quantity: 100 |
TUBE HOLDER PIN (2″ LONG) – FOR PANELS 1½” OR THICKER
| 800-348 | Quantity: 100 |
TUBE HOLDER PIN (1½” LONG) – FOR PANELS 1” OR THICKER
| 800-345 | Quantity: 100 |
TUBE HOLDER PIN (2″ LONG) – FOR PANELS 1½” OR THICKER
| 800-345 | Quantity: 100 |

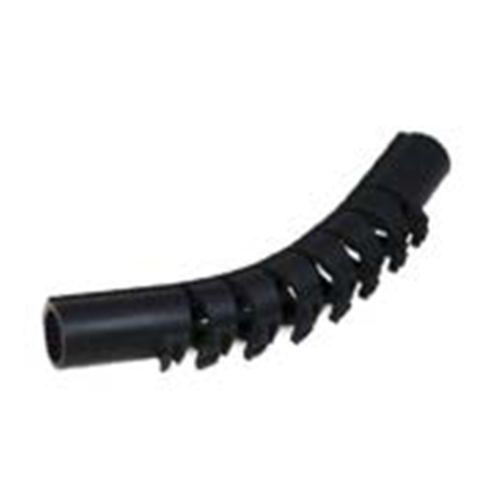

Tube Bend Support 90°
Holds tube in a tight radius 90° bend without a fitting elbow and without fear of “kinking.” Slide support easily around 1⁄2” tube while straight, then make bend by clicking tabs together.
TUBE BEND SUPPORT 90° – FOR ½” TUBING
| 800-503 | Quantity: 1 |

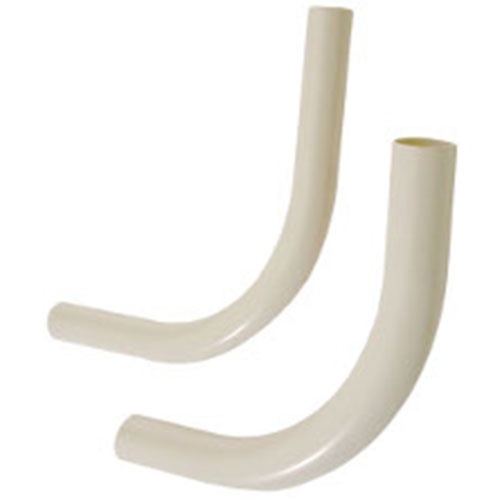

Tube Bend Support 90°
Used to hold flexible tubing in a 90° bend without a fitting elbow and creates a neat, professional appearance.
Ideal for transitioning tubing to and from wall-mounted manifolds. Protects tubing at this vulnerable location.
TUBE BEND SUPPORT 90°0 FITS UP TO 1⁄2″ TUBING
| 800-305 | Quantity: 1 |
TUBE BEND SUPPORT 90°0 FITS UP TO 3⁄4″ TUBING
| 800-304 | Quantity: 1 |

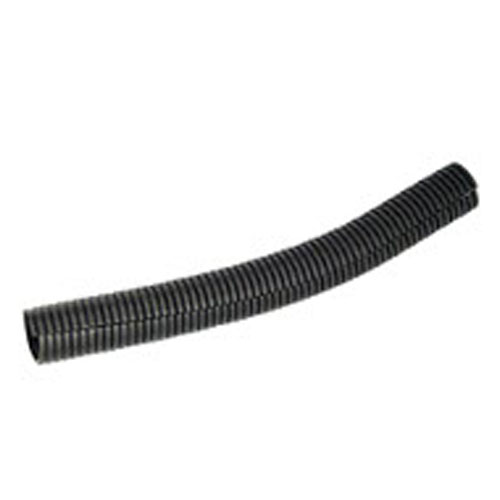

Tube Protection Sleeve
Used to protect tubing in a concrete slab at expansion joints. Pre-slit 12” lengths allow for rapid installation after tubing has been installed and before concrete pour.
TUBE PROTECTION SLEEVE 12” – FITS UP TO 1⁄2” TUBING
| 800-313 | Quantity: 1 |
TUBE PROTECTION SLEEVE 12” – FITS UP TO 3⁄4” TUBING
| 800-314 | Quantity: 1 |

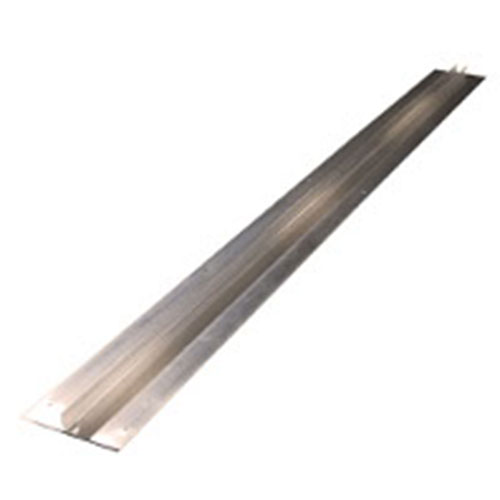

Extruded Aluminum Heat Transfer Plates
For use in radiant floor heating via joist space applications (under sub-floor) with 3⁄8” or 1⁄2” PEX tubing. Plates are 31⁄2” x 4’ long and pre-drilled for wood screws to attach underneath sub-floor. PEX tubing is held securely in tube channel on under side of plate.
Maximize floor output and simplify normally labor-intensive joist space installations (31⁄2” x 4’ long).
HEAT TRANSFER PLATE – 3⁄8” PEX TUBING
| 800-362 | Quantity: 1 | Case: 20 |
HEAT TRANSFER PLATE – 1⁄2” PEX TUBING
| 800-364 | Quantity: 1 | Case: 20 |

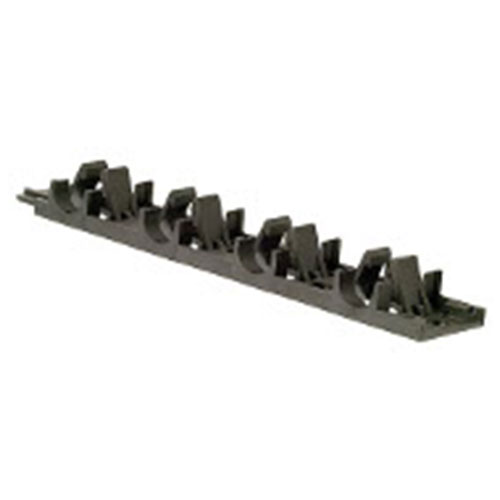

Tube Track & Tube Track Duo
Used to hold tubing to rigid foam, wood or concrete. Mounting holes are provided for appropriate fasteners. Clips at end of each piece allow 31⁄4’ (39”) sections to snap together. Use tube holding pins (top) in rigid foam board installations.
TUBE TRACK – 39” LENGTH
Holding tabs for 3⁄8” or 1⁄2” tubing are spaced every 2”
| 800-323 | Quantity: 1 |
TUBE TRACK DUO – 39” LENGTH
Holding tabs for 3⁄8” or 1⁄2” and for 5⁄8” or 3⁄4” tubing alternate every 4”
| 800-324 | Quantity: 1 |

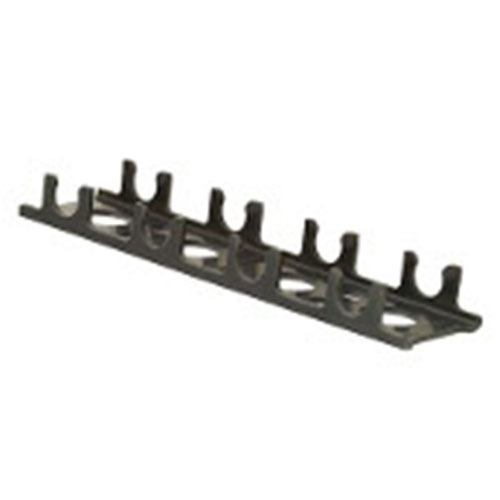

Tube Mounting Rail
Used to hold tubing to rigid foam, wood or concrete. Mounting holes are provided for appropriate fasteners. 61⁄2’ (78”) rails have prescored “break” lines should shorter lengths be needed.
Holding slots are spaced every 2”. Note: Use tube holding pins (top) in rigid foam board installations.
1⁄2” TUBE MOUNTING RAIL – 78” LENGTH
| 800-333 | Quantity: 1 |
3⁄4” TUBE MOUNTING RAIL – 78” LENGTH
| 800-334 | Quantity: 1 |

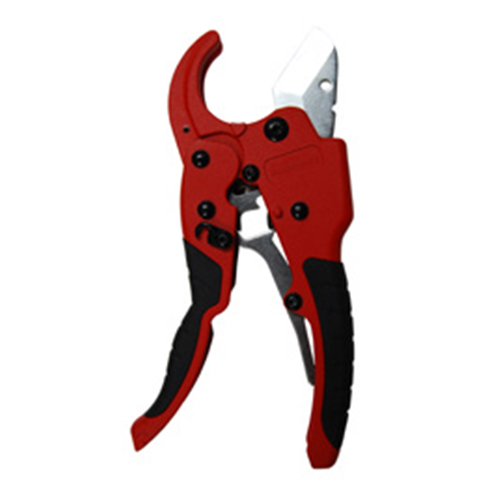

Tube Cutters
High quality plastic tube cutters for PEX, CPVC and PVC tubing. Includes 1 replacement blade.
TUBE CUTTER – PEX TUBING UP TO 2”
| 800-250 | Quantity: 1 |
REPLACEMENT BLADE FOR TUBE CUTTER
| 800-252 | Quantity: 1 |
TUBE CUTTER (RATCHETING) – CPVC & PVC TUBING UP TO 11⁄2”
| 800-251 | Quantity: 1 |
REPLACEMENT BLADE FOR TUBE CUTTER RATCHETING
| 800-253 | Quantity: 1 |

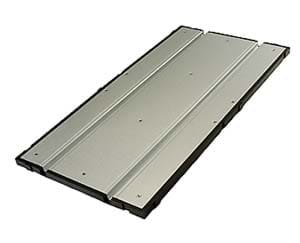

VersaTherm
| VT-MP |
| VT_RP |
Pipe Cutter
| 800-254 |

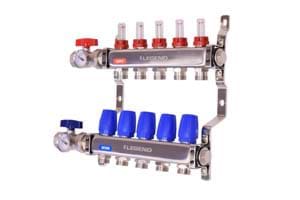

Stainless Steel Manifold
| 8330-10-4 |

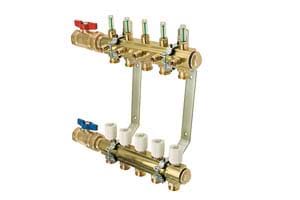

Precision Pro Manifold
| 8200-14-4 |

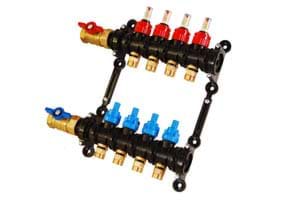

Engineered Plastic Manifold
| 8100-10-4 |
